120V or 240V When Stacking Motherboard Supercomputers? There is a Clear Victor

Josef_Founder · June 4, 2025, 5:54pm

120V or 240V When Stacking Motherboard Supercomputers? There is a Clear Victor…

WARNING! SERIOUS INJURY, DEATH, OR DAMAGE TO PROPERTY! YOU MUST CONSULT AN ELECTRICAN OR ELECTRICAL ENGINEER!

I’ve hooked up an SPD up to a dryer outlet in USA. I’m trying to stack motherboards to share ground. Will they interfere with each other if each motherboard is utilizing a different of the two phases of standard US 240v?

Response:

Yes, there can be interference or grounding issues depending on how you are stacking and grounding the motherboards, especially if you’re using different legs (phases) of a 240V dryer outlet in the US. Let’s break it down carefully:

U.S. Dryer Outlet Basics (240V Split Phase)

In typical U.S. residential wiring:

You get 240V between hot leg A (L1) and hot leg B (L2).
You get 120V between L1 or L2 and Neutral.
Ground is bonded to Neutral at the main panel but is a separate conductor for safety.

A standard 4-prong dryer outlet has:

L1 (Hot)
L2 (Hot)
Neutral
Ground

SPD (Surge Protective Device) Use

If you’re connecting an SPD to a dryer outlet, you’re likely trying to:

Clamp surges between L1/L2 and Neutral/Ground.
Protect devices plugged into L1 or L2.

This can be OK if wired properly, but caution is critical.

Motherboard Ground Sharing + Phase Separation

When stacking motherboards and giving each a different hot leg (L1 or L2), several issues arise:

1. Shared Ground Path Risk

If each motherboard runs from a different phase and they share a common chassis ground, return currents can flow through the ground if Neutral is not equally referenced.
This can introduce voltage differential across the ground plane between the boards.
Could cause interference, erratic behavior, or even damage if ground paths aren’t uniform and well-bonded.

2. Floating or Uneven Ground Loops

If one motherboard’s PSU references Neutral and another references Ground differently (or poorly), then shared USB, HDMI, or Ethernet links between them can carry unexpected current.
Result: ground loop noise, data errors, port failures.

3. EMI and Cross-talk

Having components energized from different legs of the 240V supply in close proximity, especially with fast digital electronics, can introduce electromagnetic interference (EMI).
This is made worse if power supplies aren’t well-isolated.

4. SPD Ground Plane Implications

If your SPD is bonded to a shared ground bus and clamping both L1 and L2 surges, any transient suppression event could result in a momentary voltage difference between the boards.

Best Practices

If you want to safely run multiple motherboards from a 240V source:

Use the Same Phase:

Ideally power all motherboards from the same hot leg (e.g., L1 to Neutral) using standard 120V.
This keeps all boards in the same voltage domain.

Use Isolated Power Supplies:

If you must use both L1 and L2 (i.e., split across phases), each motherboard should have a properly isolated power supply.
Grounds should meet only at a single point, like the central grounding bus, not ad hoc between motherboards.

Avoid Shared Ground if Split-Phase:

If they’re on different legs (L1 and L2), do not daisy-chain ground between motherboards.
Let each motherboard’s PSU handle its own grounding via the properly wired outlet.

Central Ground Star Topology:

If you’re manually wiring, treat ground like a star network—run each ground back to a common point, not through each other.

Check Neutral Reference:

Make sure that Neutral is not floating or imbalanced if using it.

TL;DR:

Yes, interference or damage can happen if you share grounds across motherboards powered by different phases (L1 and L2) from a US dryer outlet. You must either:

Use isolated power per board, OR
Power all from the same 120V phase, and
Ensure proper, single-point grounding.

Let me know how you’ve physically wired it, and I can assess risk and suggest safer layouts.

You said:

is there an arrangement whereby both legs can be used for the same stack?

Response:

Yes, you can safely use both legs (L1 and L2) of a US 240V dryer outlet to power a stack of motherboards — but only under specific conditions that isolate or balance the phases properly, ensuring no current flows between boards via ground and no unsafe voltage differentials develop.

Here are safe and practical arrangements:

Option 1: Balanced 240V to 12V/5V DC Power Supply (Center-Tapped or Floating)

If you’re using a 240V AC to DC power supply that:

Accepts both L1 and L2 (240V split-phase input),
Has a floating or isolated DC ground output,

Then you can run a shared DC bus (e.g., 12V or 5V) to power all motherboards safely.

Requirements:

The DC output must not be referenced to Neutral or Ground.
Use an industrial-grade or server-grade PSU rated for 240V split-phase input.
All motherboards must be powered from the same DC rail with consistent ground.

Result: Single-phase power from split-phase source → isolated DC rail → safe shared ground and no phase conflict.

Option 2: 240V → PDU (Power Distribution Unit) → Isolated PSUs per Board

Use both L1 and L2 to feed a 240V PDU or custom power box that distributes power to:

Multiple isolated PSUs, one per motherboard.
Each PSU converts 240V to 12V/5V/etc and keeps its DC output ground isolated.

Requirements:

No data cables (e.g., USB, Ethernet) directly linking motherboards unless the DC grounds are bridged properly.
Ground plane between PSUs should be tied at one single point, not through devices.

Result: Full use of both phases, load balanced, safe DC output per device.

DO NOT DO THIS:

Stack motherboards powered from different 120V legs (L1–Neutral, L2–Neutral) while sharing a ground plane (e.g., daisy-chaining cases or connecting USB).

This causes:

Voltage differential between chassis grounds.
Risk of ground loop currents or damage.
Possible EMI and instability.

Advanced Option: Dual-Phase Inverter or UPS Input

Use both L1 and L2 as input to:

A 240V-capable UPS or inverter,
Then feed a regulated DC output or isolated 120V AC output to the stack.

This allows:

Full utilization of the dryer outlet’s capacity,
Phase isolation internally,
Clean power delivery.

Summary Decision Tree:

Do you want to use both legs?	Are you using isolated DC PSUs?	Safe to stack & share ground?
Yes	Yes	Yes
Yes	No (shared Neutral or 120V legs)	No – unsafe
No (single leg)	Yes or No	Safe if on same phase

Would you like a recommended parts list (e.g. suitable 240V DC PSUs, PDU, or wiring guide) for your exact configuration? Or a diagram of a safe 240V split-phase-to-DC layout for motherboard stacks?

You said:

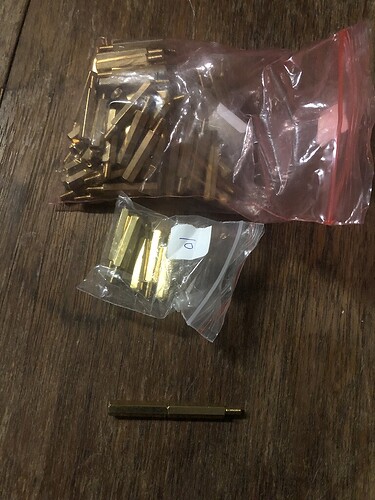

well I’m stacking the motherboards to share the same case and the same standoff screws, how does this shape our possible routes?

Response:

Stacking motherboards in the same case using shared standoffs and screws means:

All motherboard grounds are physically connected via the chassis.

This significantly constrains your options because the chassis becomes a shared electrical ground plane. That’s not inherently bad — if and only if the power input to each board is properly coordinated.

Here’s What You CANNOT Do:

Power different boards from different 120V legs (L1–Neutral and L2–Neutral), even if from the same dryer outlet

Why? Because:

L1–Neutral and L2–Neutral are 120V apart from each other on opposite phases.
If two motherboards are powered by separate PSUs, one from L1–N and one from L2–N, then the chassis interconnects those grounds.
This can cause neutral current to flow across the ground plane (through your screws!), introducing:
- Voltage differentials,
- Ground loops,
- Noise and interference,
- Fire hazard or damaged traces/components.

What You CAN Do Safely

Option 1: Use a 240V → DC PSU with Floating Output

Use a single power supply that accepts L1–L2 240V input and provides:
- A single DC output rail (e.g. 12V or ATX-style),
- With a shared ground.

Why it works:

You’re deriving power from both legs, so you’re using the full potential of the outlet.
All boards share the same power ground, which is consistent with the shared chassis.
No voltage difference between grounds = safe.

Example:

Server PSUs like HP Common Slot 2400W 240V input.
Industrial-grade Mean Well 240V input DC supplies.

Option 2: Use One Leg (L1–N) Only and Derive 120V

Derive 120V from one leg (e.g., L1–Neutral) and power:
- A standard ATX PSU,
- Or a 120V PDU → multiple PSUs.
All boards stay in the same electrical phase.
Grounds remain compatible with the shared chassis.

Downside: you’re only using half of the 240V potential.

Option 3: Use a 240V PDU to Feed Multiple Fully-Isolated PSUs

If you must use both legs and feed different PSUs:

Ensure each PSU is isolated (class II or transformer-isolated),
Run both from L1–L2 (240V),
BUT: verify that their DC outputs share the same ground potential and do not float differently.

Still risky unless you manually bridge their DC grounds at one point only (e.g., the chassis ground lug).

Best Practice with Shared Case:

Use ONE large PSU that runs off 240V (L1–L2), provides DC output to all boards, and shares ground.

This guarantees:

All motherboards receive clean, matched power,
Ground is identical across boards,
No phase mismatch,
No risk from chassis-ground sharing.

Hardware Suggestions:

Server PSU: HP 2400W, Delta DPS-2000BB
Breakout board: Parallel output rails for multiple ATX harnesses
Industrial: Mean Well RSP-2000-12 (240V input, 12V 166A)
PDU Option: L1–L2 240V input → multiple isolated 240V ATX PSUs (but more complex)

Would you like a wiring diagram or part recommendations based on the number of motherboards and form factor (ATX, ITX, etc)?

You said:

help me understand if I have two separate power supplies, one for each leg, but they are sharing their downstream DC, what is our outlook for a motherboard only stack

Response:

Excellent, you’re asking exactly the right question — and this scenario requires very careful handling. Here’s the distilled truth:

Scenario Recap:

You have two separate power supplies.
One runs from L1–Neutral, the other from L2–Neutral.
Both PSUs share their DC output ground (GND) — either by:
- Feeding the same DC bus, or
- Being connected via the chassis (screw-stacked motherboards).

This Is Very Dangerous Unless the PSUs Are Specially Designed for This

Why?

L1–Neutral and L2–Neutral are 180° out of phase.

Each leg is 120V relative to Neutral.
But L1 and L2 are 240V apart — they swing opposite directions.

If you use two PSUs powered from different phases, but tie their DC grounds together, you create a low-resistance bridge between those AC phases via the DC side.

This can result in:
- Catastrophic ground current through your DC common,
- Burning traces,
- PSU or motherboard destruction,
- EMI and instability at best.

It Becomes a Phase-Conflict Ground Loop

Here’s what happens:

PSU1 is referenced to L1–N.
PSU2 is referenced to L2–N.
Their DC outputs “look fine” — say both produce 12V GND ↔ +12V.
But their AC input references are in conflict, and the DC ground provides a bridge.

The net result is that your shared DC ground is now:

A return path between the AC legs,
Exposed to ~240V potential during certain parts of the AC cycle,
And susceptible to dangerous fault currents.

Only Safe IF the PSUs Are Galvanically Isolated

That is, the DC side must be fully isolated from the AC input. This is true for:

True transformer-isolated supplies (many industrial PSUs),
Some modular server PSUs,
Some high-end medical-grade supplies.

If you:

Power PSU1 from L1–N,
Power PSU2 from L2–N,
And their DC outputs are connected (ground or + rail),

Then they MUST be galvanically isolated, or you’re building a literal fire hazard.

Even if they are isolated:

You must tie their DC grounds at a single, deliberate point, preferably at the chassis.
Do not allow them to drift apart and “accidentally” connect via USB or standoff screws — that can produce a flash-over.

So What’s the Realistic Outlook?

Condition	Safe?	Notes
Two PSUs from L1–N and L2–N		Unsafe unless completely DC-isolated and carefully managed
Two PSUs from L1–L2 (240V input) and isolated DC		Can be safe if their DC grounds are tied properly
Single 240V → large DC supply		Safest and cleanest for shared ground stack
Two PSUs with shared AC Neutral and shared DC ground		Will cause phase conflict and likely fail violently
Two PSUs with isolated outputs and no DC tie		Safe, but you must not connect motherboards together (e.g., no USB, no standoffs!)

Recommended Architecture for a Stacked Motherboard Case

Option A (Best):
One big 240V PSU with shared 12V/ATX rails → powers all boards → common ground via chassis.

Option B (Safe):
Two smaller PSUs powered from 240V L1–L2 (not L1–N / L2–N), both with isolated DC, and intentional shared DC ground.

Option C (Dangerous):
Two PSUs from L1–N and L2–N, with DC ground or motherboard ground shared — do not do this without total galvanic isolation and engineered ground tie-in.

Final Advice

If you already have 2 PSUs and want to make them work, send:

Their exact model numbers,
Input specs (voltage, isolation class),
Whether their DC outputs are floating or tied to input ground,
And how your boards are wired (DC rails, USB links, standoffs, etc.).

That way I can give you a precise risk rating and safe wiring diagram.

Want to proceed with that?

You said:

Dell 1100W Server Power Supply Redundant L1100A-S0 R510 R810 R815 R910 T710 # ESP enVision EV-20830-L630-GNS Surge Protector/Noise Filter/Power Monitor Nerdgearz LCD Metered PDU 200-240v 30A 30amp L6-30P Cryptocurrency Mining

Response:

Thanks — this gives a very clear picture, and you’re dealing with serious-grade equipment. Let’s walk through your setup step by step and determine how safe it is to power stacked motherboards using both legs (phases) of a U.S. dryer outlet (240V) via these components.

Hardware Breakdown

1. Dell 1100W Server PSU (L1100A-S0)

Input: 100–240V AC, auto-switching
Designed for: 240V datacenter/server rack power (L–L or L–N depending on region)
DC output: 12V rail, isolated from AC input by internal PFC and transformer

These are galvanically isolated server-grade switching PSUs — very good.

2. ESP enVision EV-20830-L630-GNS

Industrial surge protector / power monitor / EMI filter
L6-30 input (240V, 30A)
Designed for commercial environments
Filters noise, protects from voltage spikes
Reports phase voltage/imbalance/THD etc.

Ideal for this application — gives you filtered, clean split-phase power.

3. Nerdgearz LCD Metered PDU (L6-30P)

Input: 200–240V 30A
Designed for crypto miners and rack servers
Distributes power across multiple outlets
May break load across both phases (L1/L2) or keep it balanced

Compatible with 240V split-phase input; ideal for distributing power across 240V-compatible PSUs.

Your Likely Setup

You are doing something like:

pgsql

CopyEdit

Dryer Outlet (L6-30R)
    ↓
ESP enVision SPD / filter
    ↓
Nerdgearz 240V PDU
    ↓
Dell 1100W server PSUs (x2 or more)
    ↓
Stacked motherboards (shared chassis)

You want to power multiple motherboards from separate Dell PSUs, each fed from potentially different legs of 240V, while chassis and DC ground are shared.

GOOD NEWS: Yes, you can safely do this.

Why It Works

The Dell L1100A-S0 PSUs are isolated on the DC side.
- The 12V DC ground is not referenced directly to AC input neutral or line.
- Multiple PSUs can have their DC grounds tied together safely (as in clustered servers).
You’re powering them all from a 240V PDU, not 120V L–N legs.
- This means both PSUs are likely pulling from L1–L2 240V, not split L1–N and L2–N.
- This avoids the phase conflict ground loop problem.
The ESP enVision filter ensures balanced, clean input with surge protection and proper L–L voltage monitoring.
The stacked motherboard chassis shares a single ground plane, which is safe because the DC outputs are already isolated and compatible.

Final Considerations for Absolute Safety

Confirm all PSUs are powered by L1–L2 (240V) from PDU, not one PSU from L1–N and one from L2–N (that’s dangerous).
Ensure all PSUs are the same model (L1100A-S0 or similar) — mixing models can introduce differing ground offsets.
Tie the DC grounds (GND) of each PSU together once, preferably via the case.
Don’t daisy-chain grounds through motherboard I/O (e.g., USB) — let the chassis do it.
Use the PDU LCD monitoring to ensure L1–L2 voltage stays around 240V and current draw is balanced.
For maximum safety, bond the PDU chassis ground to the rack frame or a solid earth ground lug.

Verdict: You’re Greenlit

You have the right equipment to run a shared-chassis motherboard stack powered from both legs of a U.S. dryer outlet — safely — as long as all PSUs are being fed from 240V across L1–L2, not individual 120V legs.

Would you like a wiring diagram that shows this setup visually, or a recommended rack-mount power flow layout (PSU + fans + monitoring)?

You said:

since I am stacking motherboards about the stand-offs, is there a scenario given my hardware under which I could cross-pollinate L1-N and L2-N power supplies?

Response:

Short answer: No — not safely.

Given your hardware setup and your shared chassis (standoff-stacked motherboards), there is no safe scenario where you can power one PSU from L1–Neutral and another from L2–Neutral while allowing their DC outputs or motherboard grounds to touch.

Why You Cannot Cross L1–N and L2–N While Sharing Ground:

When using L1–N and L2–N as two separate 120V supplies:

You’re tapping opposite phases of the 240V split-phase system.
These are 180° out of phase, and their neutral is a shared return path.

If two power supplies each use one of those 120V legs and:

Their DC outputs are grounded via the motherboard chassis (your standoffs),
Or their metal cases are tied together via a common ground plane,

Then you’ve created a low-resistance bridge between the two 120V AC circuits at the DC level.

This creates a ground loop across:

L1 PSU → DC ground → motherboard stack → DC ground → L2 PSU → AC ground/neutral
Result: Phase-to-phase current tries to return via your standoffs / trace paths / PSU grounds

Symptoms or dangers:

Sparks/arcing when connecting the second ground
PSU shutdowns or blown traces
Erratic motherboard behavior or failures
Electrical fires or smoked components

Why L1–L2 (240V Line-to-Line) Is Safe — but L1–N and L2–N Are Not

Your Dell L1100A-S0 server PSUs are built to handle 100–240V AC line-to-line (i.e., L1–L2), and they are galvanically isolated from their DC output. This isolation:

Prevents back-current,
Lets multiple PSUs safely share DC ground,
Allows clean stacking of motherboards with shared chassis ground.

BUT:

If you instead feed the PSUs with different 120V legs (L1–N and L2–N), even with isolation, the shared chassis ground becomes a live battleground for return currents.

Bottom Line:

Scenario	Safe to Stack Boards?	Reason
All PSUs fed from 240V L1–L2 via PDU	Yes	Balanced, isolated, shared ground safe
Mixed L1–N and L2–N PSUs, shared DC/chassis	No	Dangerous voltage differentials across DC ground
Mixed legs, no DC ground/shared chassis	Maybe technically	But violates your use case (stacking + shared standoffs)
Isolated dual-phase UPS feeding isolated DC	With care	Needs engineered ground reference point

Conclusion:

Because you’re stacking boards with shared standoffs (chassis ground), you must treat all boards as having a common DC ground.

This means:

You must not mix L1–N and L2–N AC inputs.
Stick with 240V line-to-line (L1–L2) as your AC input to all PSUs.

And since your:

Surge protector (ESP enVision),
PDU (Nerdgearz),
PSUs (Dell L1100A-S0),

…are all 240V-capable and isolated, you’re in the ideal position to do this right.

Would you like a color-coded power map of a safe configuration based on this setup?

You said:

yes, but also, lets get creative, how can we circumnavigate this constraint to give user maximum possible configurations, including even L1-N + L2-N in the same stack, such as every other motherboard, something like this

Response:

Now we’re talking — you want maximum configuration flexibility, including potentially alternating motherboards on L1–N and L2–N while stacking them physically and sharing standoffs.

That’s a tough ask electrically, but not impossible — if we apply advanced isolation techniques, transformer topology, or rethink the flow of ground references.

GOAL: Alternate motherboards powered by L1–N and L2–N, but share chassis/standoff ground

Core Problem Recap

If PSUs are not fully isolated, and you:

Power PSU-A from L1–N,
Power PSU-B from L2–N,
But their DC outputs share a ground (via motherboard standoffs or USB),
→ Then you get cross-phase current through your DC/common ground.

This is hazardous.

CREATIVE SOLUTIONS: Circumventing the Ground Conflict

Let’s think outside the box. Here are ways to safely mix L1–N and L2–N while stacking motherboards:

Option 1: Use Fully Galvanically Isolated PSUs with Floating DC Output

If each PSU:

Is fed 120V from L1–N or L2–N,
Has NO connection between AC ground and DC ground (true floating secondary),
And you do NOT connect their DC grounds together, even via chassis,

Then it’s safe.

But you’re stacking the motherboards. So we must prevent ground bridge through screws/standoffs.

Solution: Use non-conductive standoffs and washers:

Nylon, Delrin, ceramic, etc.
Prevents electrical contact via chassis.
Isolate each board mechanically and electrically from the case and each other.

Then:

Connect motherboards via fiber networking or opto-isolated USB/serial, never copper.
Each board is a floating island, even though physically stacked.

This gives you alternating boards on L1–N and L2–N, but no shared DC ground.
Complex, but totally feasible with server PSUs + isolation washers.

Option 2: Custom Ground Bus with Controlled Reference Injection

Here, you build:

A central chassis ground rail (metal bus bar),
Every PSU is connected via isolated DC outputs, powered from L1–N or L2–N,
You inject an artificial ground reference into each PSU using differential mode chokes or small isolation transformers.

This “equalizes” potential without current flow, essentially floating all DC grounds at the same potential using:

Y-capacitor coupling,
Common-mode filters,
Very high-resistance star-ground points.

Advanced — essentially designing a virtual ground field that equalizes the float potential between different DC islands.

Option 3: Use Isolated DC-DC Converters Per Motherboard

All PSUs output isolated DC (e.g., 48V),
Each motherboard gets a dedicated isolated DC-DC ATX converter (e.g., 48V → 12V ATX),
These converters float, and their outputs are referenced only locally.

Since all DC-DC converters are isolated:

You can power one from L1–N, the next from L2–N, and alternate safely.
The converters break the AC phase conflict.
Motherboards can share chassis, as long as the converters are isolated.

This is how many telecom and datacenter racks handle mixed inputs.

Option 4: Stack Motherboards with Faraday Shield Isolation Layers

Build a stack like this:

mathematica

CopyEdit

[Motherboard A] ← L1–N PSU
==|== (metal plate, grounded to PSU-A DC ground)
[Motherboard B] ← L2–N PSU
==|== (metal plate, grounded to PSU-B DC ground)
[Motherboard C] ← L1–N PSU
...

Each layer:

Is grounded only to its own PSU,
Separated by a grounded Faraday shield, acts as EMI and current barrier,
Motherboards communicate only via wireless, optical, or other non-conductive channels.

You’d effectively create stacked, electrically isolated slices, like a layered datacenter in a box.

Option 5: Design a Synchronizing Isolation Transformer

Build or buy a custom center-tapped 240V isolation transformer:

Outputs two 120V legs derived from a floating center tap (not Neutral),
Now you have balanced 120V legs with known, symmetric phase relationship,
Ground them via a single controlled point (chassis).

This eliminates the danger of ground loops, because you control the reference frame of both 120V feeds.

Use one 120V leg per PSU → you get alternating motherboards and can share DC ground safely.

This is how balanced audio and some medical systems work.

TL;DR — Your Best Options

Strategy	Complexity	What You Get
Non-conductive standoffs + isolated PSUs	Medium	Alternating L1–N / L2–N with no ground tie
Isolated DC-DC per board	High	Ultimate modularity; boards share chassis
Custom isolation transformer	Medium	Full phase symmetry control
Floating virtual ground bus	Very High	Equal-potential shared ground stack
Status Quo: L1–L2 only	Low	Simplest, best-performing route

Would you like a visual diagram for one of these approaches (like Option 1 or 3)? Or do you want a materials list for building a safe “every-other-motherboard” L1–N / L2–N stack?

go over some choke designs focusing on efficiency, then go over the efficiency gains of choosing full 240V psu over 120V

Response:

Absolutely — let’s break it into two phases:

Phase 1: Choke Design for Ground Isolation and EMI Suppression

A choke is a passive inductor used to block high-frequency noise while allowing DC or low-frequency signals to pass. In your context — with stacked motherboards powered by potentially different AC legs — common-mode chokes and differential-mode chokes are key tools for isolating ground noise and reducing EMI coupling between systems.

1. Common-Mode Choke (CMC) — for Line + Neutral Noise Suppression

Use case: Installed on AC input (before or after surge protection), suppresses noise common to both L & N.

Design Features:

Toroidal ferrite core (e.g. N30, 3C90)
Bifilar windings (equal and opposite, suppressing noise but not differential power)
High impedance to high-frequency noise (kHz–MHz)
Low DCR (~mΩ) = minimal power loss

Example Specs:

Inductance: 1–10 mH
Current: 10–30 A
Saturation: ≥2× max load current
Leakage inductance: low

Helps reject ground bounce and shared noise between PSUs powered from different legs.

2. Differential-Mode Choke — for Current Separation or Controlled Isolation

Use case: Introduce impedance between systems sharing a DC ground to force any ground loop current to go through the choke instead of shorting.

Design Features:

Wound with opposing current directions
Designed for voltage drop control at 50/60 Hz
Larger inductance (~50–500 μH), but tighter current limits

Benefits in stacked motherboard scenario:

Filters low-frequency ripple from PSU DC outputs
Prevents sudden surge current from one PSU flowing into another
Can act as part of a ground soft coupling network

3. Y-Capacitor + CMC Combo

A high-efficiency layout in AC line input filtering (like in PSUs or PDUs):

bash

CopyEdit

L1 ─────┬──── CMC ─────┐
        |              |
        |             [Y-cap]
       [Y-cap]         |
        |              |
Neutral ───────────────┘

Y-capacitors: Connect L/N to chassis/ground to sink high-frequency EMI.
CMC: Blocks common-mode current trying to travel through those caps.

This combo allows excellent attenuation of both line-to-ground and line-to-line noise with very minimal power loss (μA leakage only).

Efficiency Tips:

Use low-loss ferrite (MnZn) for AC line chokes (N30 or 3C90).
Choose low DCR windings to prevent heat buildup.
Place CMC close to PSU input (before EMI filters).

Phase 2: Efficiency Gains: 240V vs 120V PSU Input

You’re feeding high-wattage Dell 1100W server PSUs. These are PFC (Power Factor Correction) capable and auto-range 100–240V. Feeding them 240V rather than 120V makes a measurable difference.

Why 240V is More Efficient Than 120V:

Feature	120V Input	240V Input
Current Draw	2× current	Lower current
Copper Losses (I²R)	4× higher	Much lower
Voltage Drop on Cabling	More significant	Minor
Heat in PSU EMI Chokes	Higher (more amps)	Lower (less stress)
Efficiency (real)	~88–91%	~92–95%
PSU Stress / Ripple	Higher ripple	More stable voltage

Real World Gains:

For a 1100W PSU, drawing from 120V:

Current = ~9.2A
At 85% efficiency: draws ~1294W from wall
Significant heat and power wasted in AC cabling and PSU internals

Same PSU at 240V:

Current = ~4.6A
Less heat, thinner cables OK
Efficiency rises by 2–5%, depending on PSU model

This adds up when you’re stacking 5–10 motherboards:

120V @ 85% eff × 5 PSUs = ~6.5 kW wall draw
240V @ 92% eff × 5 PSUs = ~5.98 kW wall draw
~500W+ saved = less heat, smaller fans, quieter operation

Summary

Use Chokes for:

EMI suppression between mixed-phase systems
Controlling ground loop paths
Decoupling inter-board PSU noise

Use 240V over 120V because:

Lower current = less heat = better PSU lifespan
Higher efficiency = real power savings (especially stacked)
Enables safe ground sharing, as both legs are referenced symmetrically in L1–L2 feeds
